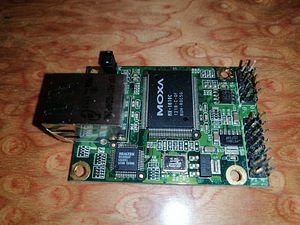

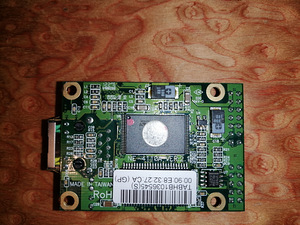

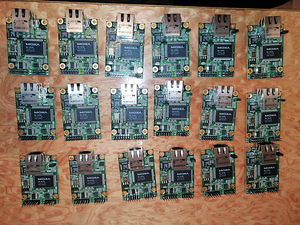

MOXA NE-4110A, RS-422/485, 10/100BaseT

NE-4110A

NE-4100 Series

Device server module for RS-422/485 devices, supports 10/100BaseT(x) with RJ45 connector

Platform

CPU

16-bit MCU

Memory

Flash

2 MB

SDRAM

1 MB

Input/Output Interface

Configurable DIO Channels (by software)

4

Ethernet Interface

10/100BaseT(X) Ports, Auto MDI/MDI-X

8-pin RJ45

Magnetic Isolation Protection

1.5 kV (built-in)

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control

Ethernet Software Features

Configuration Options

Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

Management

ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android API

Android 3.1.x and later

Serial Interface

No. of Ports

2 (1 for serial interface, 1 for TTL console port)

Serial Standards

RS-422, RS-485

Operation Modes

Real COM mode, TCP Client mode, TCP Server mode, UDP mode

Baudrate

110 bps to 230.4 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, DTR/DSR, XON/XOFF

Serial Signals

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Voltage

5 VDC

Power Consumption

290 mA @ 5 VDC

Physical Characteristics

Dimensions

57 x 40 mm (2.24 x 1.57 in)

Weight

40 g (0.09 lb)

Form Factor Type

Ready-to-go pin header modules

Environmental Limits

Operating Temperature

0 to 55°C (32 to 131°F)

Storage Temperature (package included)

-40 to 60°C (-40 to 140°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1
IEC 60068-2-3
IEC 60068-2-14

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

289,573 hrs

Standards

Telcordia SR332
